The PT Webcam 80 is a simple "Plug & Play" webcam with multiple features:

  1. Supports up to 1080p-30/25 fps with a wide 80° horizontal field of view.
  2. Plug and play USB 2.0 video & audio connectivity.

  3. Built in microphone array with unique noise reduction algorithm to accurately capture your voice from up to 12 feet away.

  4. Wide Dynamic Range to deliver high quality video during various lighting environments.
  5. Features a CMOS sensor with an advanced 2D/3D noise reduction algorithm, delivering ultra-high SNR for optimized noise reduction. 55dB SNR for clear video in low light environments.
  6. EPTZ – Electronic Pan/Tilt/Zoom up to 8x
  7. Webcam v2 Configuration Tool


To get started:

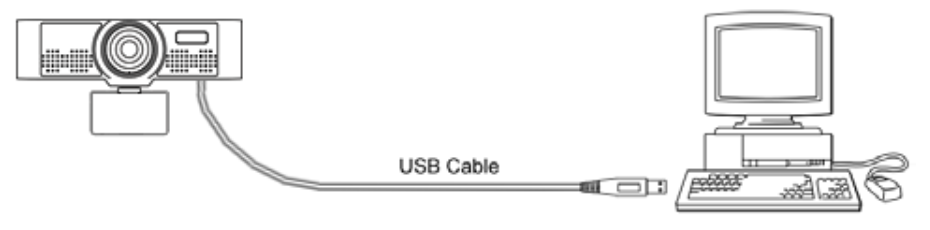

  1. Start by connecting the USB 2.0 cable to your Mac or PC to power on and access the camera.
  2. You can adjust the video settings using the Webcam v2 Configuration Tool available at ptzoptics.com/downloads.
  3. You can also access the downloads directly here:
    • Windows app can be found here:
    • Mac app can be found here
  4. More information can be found on using the Configuration Tool here for Windows and here for Mac.
